Channels

The IM7 always measures voltage and current from the selected potentiostat as its primary channels. Additionally, you can configure synchronous and asynchronous channels for expanded measurement capabilities.

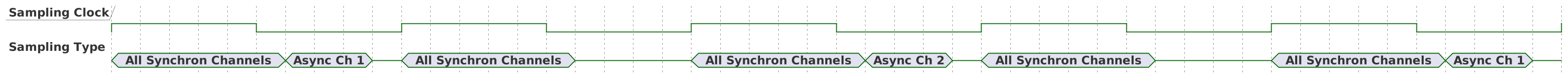

PAD4 channels are synchronous channels that are measured simultaneously with the voltage and current from the potentiostat. TEMP-U2 channels, for example, are asynchronous channels that are sampled in an interleaved pattern after the synchronous channels.

@startuml

mode compact
skinparam defaultFontSize 20
skinparam defaultFontName Arial
skinparam backgroundColor transparent

clock "Sampling Clock" as clk with period 100
concise "Sampling Type" as C
hide time-axis

scale 3000 width

@clk*0
C is "All Synchron Channels"

@60
C is "Async Ch 1"

@90
C is {-}

@clk*1
C is "All Synchron Channels"

@160
C is {-}

@clk*2
C is "All Synchron Channels"

@260
C is "Async Ch 2"

@290
C is {-}

@clk*3
C is "All Synchron Channels"

@360
C is {-}

@clk*4
C is "All Synchron Channels"

@460
C is "Async Ch 1":

@490
C is {-}

@enduml

Further information about sampling rates can be found in the FAQ section: Sampling Rate vs Output Data Rate.

Synchronous - PAD4

Use the Synchronous Channels tab to enable or disable individual PAD4 channels by checking or unchecking the corresponding boxes.

../../_images/hardware_settings_synchron_channels.png

When enabled, these channels actively acquire data during DC measurements in synchronization with the two primary voltage and current channels. This means these channels are sampled simultaneously with the two primary measurement channels.

During EIS measurements, these channels are also used to calculate additional impedances with either the main voltage or current channels, depending on the selected Impedance Role.

Advanced Mode and Impedance Role with Gain settings are not yet fully implemented in the current Zahner Lab version.

Asynchronous

These channels are used exclusively for DC measurements and do not participate in impedance calculations, but they are sampled at each frequency point during EIS measurements.
